GEOPHONES
Geophone Elements ranging from 2Hz to 50Hz for all your Seismic and Industrial needs
XT = Extended Tilt (XTW = Extended Warranty 3 years) | HS = High Sensitivity | HT = High Temperature | OB/OD = Omni Directional
Note: specifications above are for upright geophones; specifications for horizontal geophones on request. *Requires ≥1M ohm system input impedance
Seismic
Industrial
Both
| Image | Natural Frequency (Hz) |
Model No |
Coil Resistance (Ω) |
Tilt (°) |
Sensitivity (V/m/s) |
Damping | Distortion (%) |
Spurious Frequency (Hz) |
Temperature (°C) |
Case Type (Land = HL / Marsh = HM) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2 | HG-6 LF | 3600 | - | 22 | 0.5 | ≤0.90 | - | -40 to +70 | HL-14 | HLH-14 | HL-6B | View PDF |
|
|
2 | HG-5 LF | 9800 | - | 34 | 0.7 | ≤0.90 | - | -40 to +70 | HL-16 | HLH-16 | HL-6B | View PDF |
|

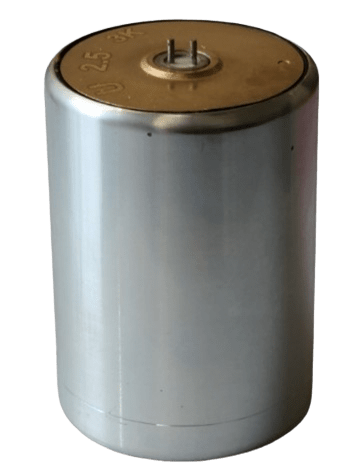

2.5 | HG-2 | 3000 | 5 | 150 | 0.6 | ≤0.20 | 100 | -40 to +100 | HL-15 | HLH-15 | HL-15/3C | View PDF |
|
|
3 | HG-5 LF HS | 10800 | - | 89 | 0.7 | ≤0.90 | - | -40 to +70 | HL-16 | HLH-16 | HL-6B | View PDF |
|
4.5 | HG-6 (A coil) | 375 | - | 28 | 0.265 | ≤0.30 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
4.5 | HG-6XT | 375 | 5 | 28.8 | 0.56 | ≤0.30 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
4.5 | HG-6 (B coil) | 375 | - | 28.8 | 0.56 | ≤0.30 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
4.5 | HG-6XTW | 375 | 5 | 28.8 | 0.56 | ≤0.30 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
4.5 | HG-6HS (A coil) | 3500 | - | 78.9 | 0.284 | ≤0.50 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
4.5 | HG-6HS (B coil) | 3500 | - | 78.9 | 0.58 | ≤0.30 | 140 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
4.5 | HG-5HS | 3000 | 5 | 95 | 0.3 | ≤0.30 | 160 | -40 to +100 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
|
4.5 | HG-5UHS* | 11500 | 10 | 204 | 0.65 | ≤0.15 | - | -40 to +100 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
5 | HG-5 | 475 | 10 | 28.8 | 0.25 | ≤0.10 | 150 | -40 to +100 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
|
5 | HG-5HS | 1850 | 10 | 83 | 0.389 | ≤0.10 | 150 | -40 to +100 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
|
5 | HG-5HSr | 1850 | 10 | 83 | 0.389 | ≤0.10 | 150 | -10 to +65 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
|
5 | HG-5VHS | 3000 | 10 | 100.4 | 0.268 | ≤0.15 | 160 | -40 to +100 | HL-12/HL-6B | HM-1R/HM-1M | View PDF |
|
8 | HG-6 | 375 | 20 | 28.8 | 0.315 | ≤0.20 | 150 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
8 | HG-4 | 375 | 20 | 28.8 | 0.315 | ≤0.20 | 160 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
8 | HG-6HT | 900 | - | 42.8 | 0.407 | - | - | -40 to +200 | - | View PDF |
|
8 | HG-11D | 4000 | 10 | 97 | 0.35 | ≤0.15 | 180 | -40 to +100 | - | View PDF |
|
10 | HG-24SG | 350 | 15 | 22.8 | 0.68 | ≤0.075 | 240 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
10 | HG-6HT | 400 | - | 24.4 | 0.398 | - | - | -40 to +200 | - | View PDF |
|
10 | HG-6 LF OB | 1960 | 360 | 24.5 | 0.7 | ≤0.90 | - | -40 to +70 | HL-14 | HLH-14 | HL-6B | View PDF |
|
10 | HG-24CT | 395 | 20 | 27.5 | 0.316 | ≤0.10 | 240 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
10 | HG-24 | 375 | 15 | 28.8 | 0.25 | ≤0.10 | 240 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|

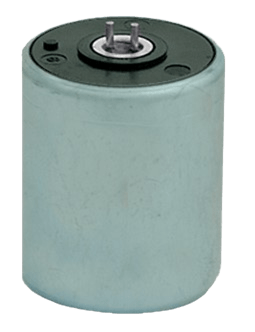

10 | HG-6 | 375 | 25 | 28.8 | 0.25 | ≤0.20 | 170 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
10 | HG-7 | 375 | 25 | 28.8 | 0.25 | ≤0.20 | 340 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
10 | HG-6HT | 900 | - | 42.8 | 0.326 | - | - | -40 to +200 | - | View PDF |
|
10 | HG-24HS | 1800 | 10 | 85.8 | 0.475 | ≤0.10 | 240 | -40 to +100 | HL-11/HL-6B | HM-1R/HM-8 | View PDF |
|
14 | HG-25 M OB | 500 | 360 | 22 | 0.47 | ≤0.70 | - | -40 to +100 | - | View PDF |
|
|
14 | HG-6 | 375 | 25 | 28.8 | 0.18 | ≤0.20 | 190 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
14 | HG-7 | 375 | 25 | 28.8 | 0.18 | ≤0.20 | 420 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
14 | HG-6OB | 375 | 360 | 28.8 | 0.18 | ≤0.60 | 190 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
14 | HG-6 YB HT | 900 | 180 | 42.8 | 0.233 | - | - | -40 to +200 | - | View PDF |
|
|
14 | HG-6OB | 3500 | 360 | 80 | 0.185 | ≤0.60 | 190 | -40 to +100 | HL-5/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
15 | HG-25 M OD | 2400 | 360 | 52 | 0.57 | ≤0.70 | 160 | -40 to +100 | - | View PDF |
|
15 | HG-25 M OD HT | 2400 | 360 | 52 | 0.57 | ≤0.70 | 160 | -40 to +200 | - | View PDF |
|
|
15 | HG-25 M OD VHT | 2400 | 360 | 52 | 0.57 | ≤0.70 | 160 | -40 to +240 | - | View PDF |
|
|
15 | HG-6 YB HT | 3500 | 180 | 80 | 0.226 | - | - | -40 to +200 | - | View PDF |
|
|
20 | HG-7 | 375 | 25 | 16.5 | 0.68 | ≤0.20 | 450 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|
|
30 | HG-7 | 370 | 360 | 12.8 | 0.65 | ≤0.20 | 500 | -40 to +100 | HL-3/HL-6B/HL-6S | HM-1R/HM-8 | View PDF |
|

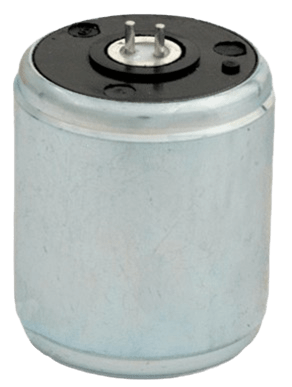

30 | HG-11 | 360 | 360 | 30 | 0.55 | ≤0.20 | 500 | -40 to +100 | HL-11/HL-6B | HM-1R/HM-8 | View PDF |
|
|
40 | HG-11 | 1500 | 360 | 50 | 0.6 | ≤0.20 | 500 | -40 to +100 | HL-11/HL-6B | HM-1R/HM-8 | View PDF |
|
50 | HG-7 | 370 | 360 | 17.2 | 0.7 | ≤0.20 | 570 | -40 to +100 | HL-11/HL-6B | HM-1R/HM-8 | View PDF |
